Brazing Diamond Tools: Definition, Types, Advantages, and Applications in the Stone Industry

Definition of Brazing Diamond Tools

Brazing diamond tools are a new type of superhard material tool that forms a strong, chemical metallurgical bonding brazing material layer between diamond (abrasive particles) and metal based tool substrate through a specific brazing process (usually high-temperature brazing). The core of this process is that the elements in the active brazing material (such as Cr, Ti, Ni, etc.) can react chemically with the carbon atoms on the surface of the diamond to form stable carbides.

This is fundamentally different from traditional electroplated or sintered diamond tools. In traditional tools, diamond is only mechanically "embedded" in a metal bonding agent, with weak bonding strength. And brazing technology has achieved high-strength chemical metallurgical bonding between diamond and substrate, which has brought about a qualitative leap in tool performance.

Main Types and Applications

1. Brazing diamond grinding wheels

• Description: Brazed diamond grinding wheels are one of the most common types of brazed diamond tools. They are designed for grinding and precision machining of a wide variety of materials, including metals, ceramics, and composites.

• Structure: These grinding wheels consist of a metal matrix (usually steel or aluminum alloy) with one or more layers of diamond abrasive grains brazed to its surface. The arrangement of the diamonds can be customized to meet specific grinding requirements.

• Application areas: Brazed diamond grinding wheels are widely used in high-precision, high-efficiency manufacturing processes across various industries, such as tool grinding, surface finishing, and material removal.

2. Brazed diamond saw blade

• Description: Brazed diamond saw blades are designed for cutting hard, brittle materials, including stone, concrete, and ceramics.

• Structure: The saw blade is made of metal substrate and a diamond cutting head is embedded by brazing. The diamond particles in the cutting head are highly exposed, forming a large chip removal space, thereby achieving efficient cutting.

• Application areas: These saw blades are commonly used in construction, bricklaying, and stone processing, and are particularly adept at clean and precise cutting of hard materials.

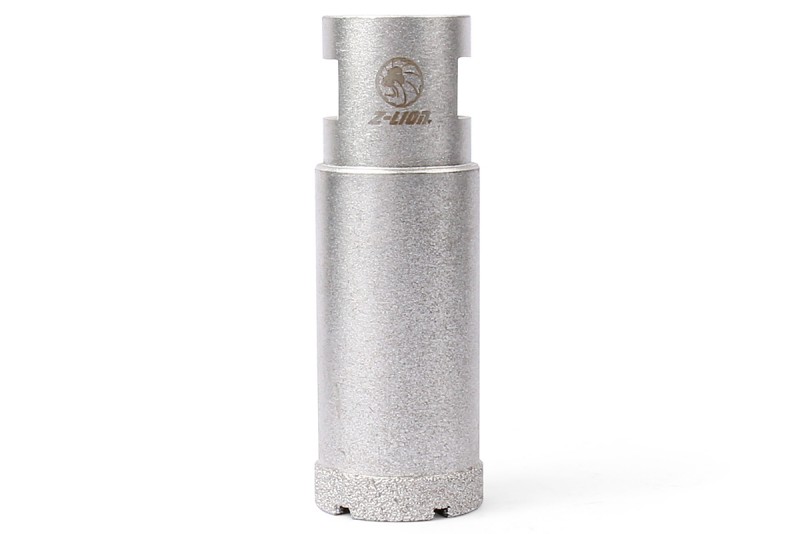

3. Brazed diamond drill bits

• Product description: Brazed diamond drill bits are designed for drilling into hard materials such as stone, concrete, and glass. They are particularly suitable for drilling large-diameter holes.

• Structure: The drill bit has a metal body with diamond particles brazed at the cutting edge. This design enables efficient penetration and material removal.

• Application areas: Brazed diamond drill bits are widely used in the construction, mining, and glass industries, where they are essential for tasks such as core drilling and drilling holes for pipe and electrical installations.

4. Brazed diamond wire saw

• Description: A brazed diamond wire saw is a unique tool consisting of a series of beads brazed with diamond abrasive particles and connected by a steel wire rope.

• Structure: This design offers exceptional flexibility, enabling the wire saw to handle complex shapes and contours during cutting.

• Application areas: Brazed diamond wire saws are primarily used in the mining industry for quarrying large rocks and cutting complex shapes in stone processing. Their flexibility makes them ideal for applications requiring precision and adaptability.

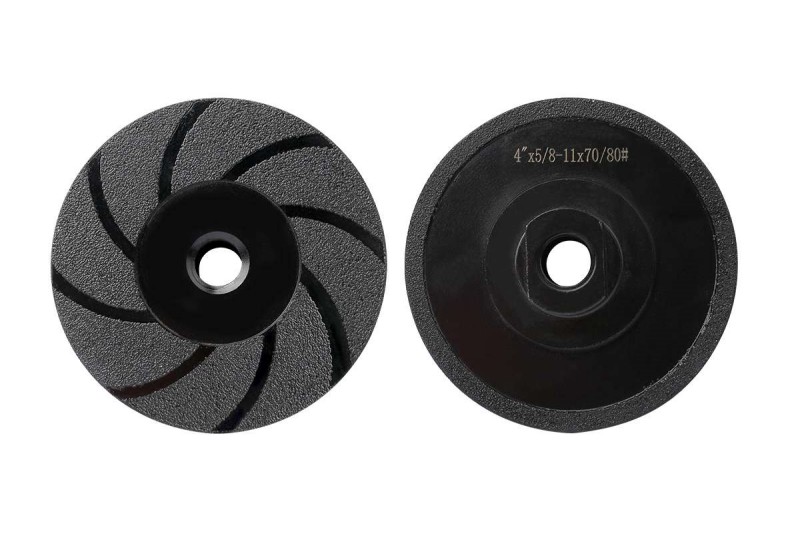

5. Brazed diamond grinding discs/blocks

• Description: Brazed diamond grinding discs and blocks are designed to smooth, polish, and repair surfaces of a wide variety of materials, including stone and tile.

• Structure: These tools feature a metal backing with brazed diamond particles on the surface, providing a durable and effective grinding solution.

• Application areas: Brazed diamond grinding discs and blocks are commonly used in the construction and decoration industries for surface treatment, polishing, and finishing.

Core Advantages

1. Ultra-high grip

One of the most significant advantages of brazed diamond tools is their superior bond strength. The chemical-metallurgical bond formed during brazing is far stronger than the diamond itself. This ensures that the diamond particles remain firmly attached to the tool throughout its entire service life, preventing premature detachment. Therefore, operators can utilize the diamond until it is completely worn away, achieving what is known as “lifetime” performance.

2. Excellent clarity and processing efficiency

Brazed diamond tools, due to their strong bonding, allow the diamond particles to be exposed at a greater height (typically up to two-thirds of the abrasive grain height), thus maintaining extremely high sharpness. This greater exposure provides more chip evacuation space, facilitating efficient chip removal and reducing the likelihood of clogging. Therefore, brazed diamond tools can achieve machining efficiency several times higher than conventional tools, making them ideal for demanding applications.

3. Longer service life

The high gripping strength provided by the brazing process significantly reduces diamond particle wear and detachment. This durability translates to longer tool life, allowing operators to complete more tasks before tool replacements become necessary. This longer tool life not only increases productivity but also reduces the costs associated with frequent tool changes.

4. High machining precision and surface quality

Brazed diamond tools offer excellent rigidity and a controlled abrasive grain distribution, contributing to a smooth machining process and minimizing vibration. This stability enables higher machining accuracy and superior surface finish. Operators can achieve precise cutting and finishing results, making these tools suitable for applications with extremely high requirements for detail and quality.

5. Ordered arrangement of abrasive grains

Brazing technology enables the precise positioning and orderly arrangement of diamond abrasive grains during the manufacturing process. This contrasts sharply with traditional cutting tools, where abrasive grains may be randomly distributed, leading to uneven load distribution and unstable performance. The orderly arrangement of abrasive grains in brazed tools optimizes cutting performance, extends service life, and ensures efficient tool operation throughout its lifespan.

6. Energy-saving and environmentally friendly

Brazed diamond tools are not only highly efficient but also environmentally friendly. Their high efficiency and long lifespan mean fewer tools are needed to complete the same workload, thus reducing material consumption and waste. This aligns with the principles of green manufacturing, making brazed diamond tools a sustainable choice for modern industry.

Applications in the Stone Industry

1. Mining

In modern stone quarrying, brazed diamond wire saws are the primary equipment for quarrying large blocks of stone. These saws can be remotely controlled, allowing for precise cutting of the ore body. The advantages of using brazed diamond wire saws include:

• High efficiency: It can quickly and accurately cut large square stones, thereby improving overall mining efficiency.

• High yield: Precision cutting minimizes waste, thereby maximizing the yield of usable stones.

• Minimum damage: The cutting process causes minimal damage to the surrounding ore body, maintaining the integrity of the remaining material.

• Safety and environmental friendliness: Compared to traditional mining methods, wire sawing is safer and more environmentally friendly, reducing its impact on the surrounding ecosystem.

2. Cutting (Sawing)

After the rocks are extracted, they are cut into easily transportable slabs using large brazed diamond saw blades. These saw blades are typically mounted on frame saws or circular saws, offering several advantages:

• High efficiency: Brazed diamond saw blades can easily cut hard materials, significantly speeding up the sawing process.

• Long service life: The durability of brazing tools reduces the frequency of replacement, thereby reducing the overall cutting cost per square meter of slate.

3. Grinding and polishing of stone slabs

After cutting, the stone slab needs to be ground and polished to obtain a smooth surface. Brazed diamond grinding discs and blocks are used at various stages of this process, including:

• Thickness grinding: Ensures uniform thickness of the board material.

• Rough grinding: Removes excess material, preparing for more refined processing.

• Fine grinding and polishing: to achieve a high gloss finish on the stone surface.

The sharpness of brazed diamond tools effectively prevents “pasty grinding” (a common problem where tools become clogged with material), thus improving overall grinding and polishing efficiency. They are particularly effective for high-hardness and difficult-to-machine stones.

4. Irregular processing and carving

Brazed diamond tools are also essential for creating intricate stone carvings, such as tombstones, reliefs, and decorative elements. Various small brazed diamond tools, including milling cutters and grinding heads, are used for fine engraving. Their advantages include:

• High precision: This tool can perform fine and precise machining, meeting the machining needs of complex shapes.

• Good controllability: Operators can easily manipulate the tools to achieve the desired design and surface treatment effects.

5. On-site installation and decoration

Brazed diamond thin-walled drill bits are used for precise drilling into existing stone walls or floors, such as for pipe or electrical installations. The advantages of these tools include:

Clean cut: The drill bit produces clean holes without damaging the surrounding material.

Versatility: The handheld brazed diamond angle grinder can also be used for on-site cutting and trimming, making it ideal for finishing installation work.

In Conclusion

In summary, brazed diamond tools represent a significant advancement in diamond tool technology, perfectly combining the unparalleled hardness of diamond with superior performance achieved through strong chemical bonding. Their applications in the stone industry—from mining to cutting, grinding, polishing, and fine carving—have demonstrated their crucial role in improving efficiency, quality, and cost-effectiveness. As the stone industry continues to evolve, brazed diamond tools will continue to play an indispensable role, driving innovation and enhancing the overall productivity of stone processing.
